RIFE VS-F9 - 9 Screens / 3x3
Purpose-built for 9-screen video wall projects where alignment, stability and professional multi-display mounting matter.
30-60 inch
Up to 450 kg
800x400 mm
20 mm depth + 20 mm height adjustment
Need 8 Screens in a 4x2 Layout?
RIFE can manufacture a custom eight-screen 4x2 floor-standing video wall on project order. This is not a separate standard SKU. Final dimensions, screen size, VESA, total load and structural details are confirmed against the actual displays before manufacture.

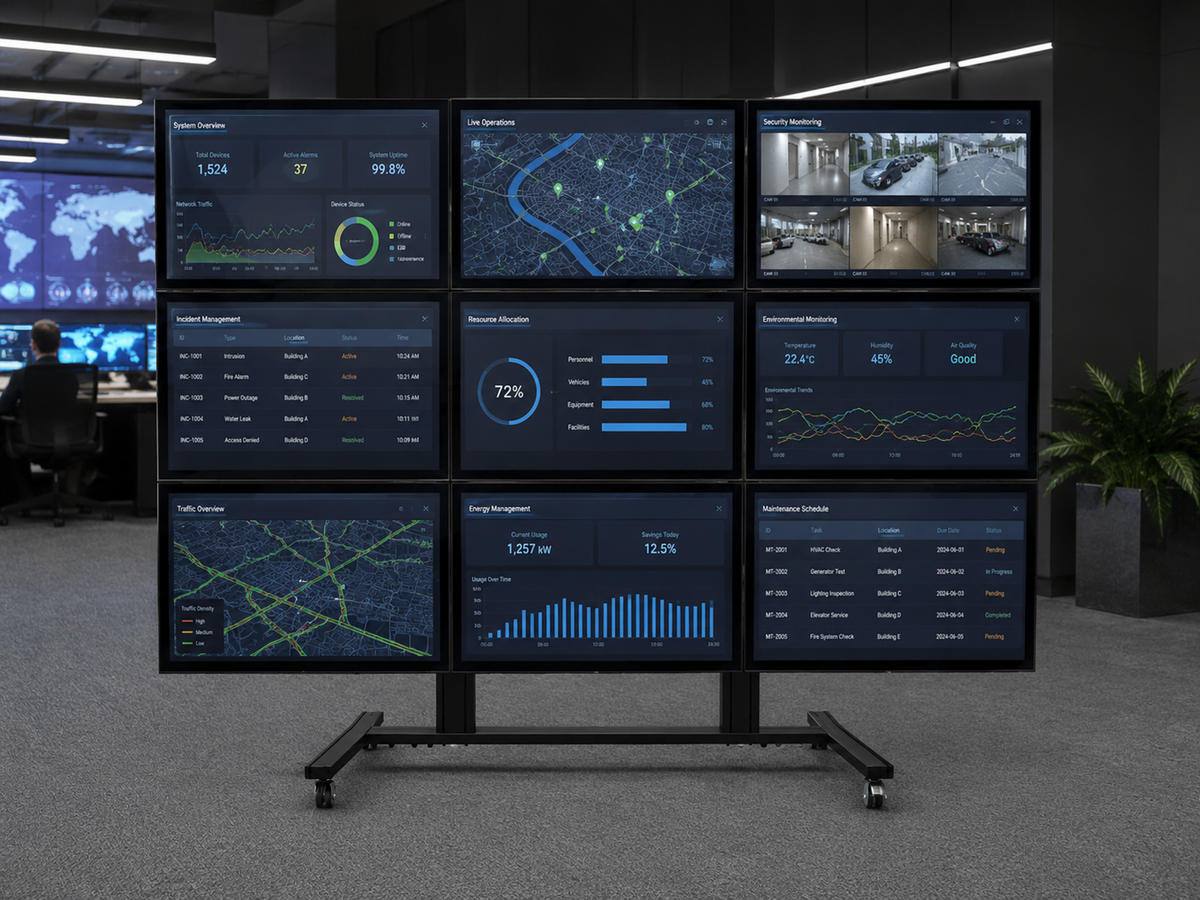

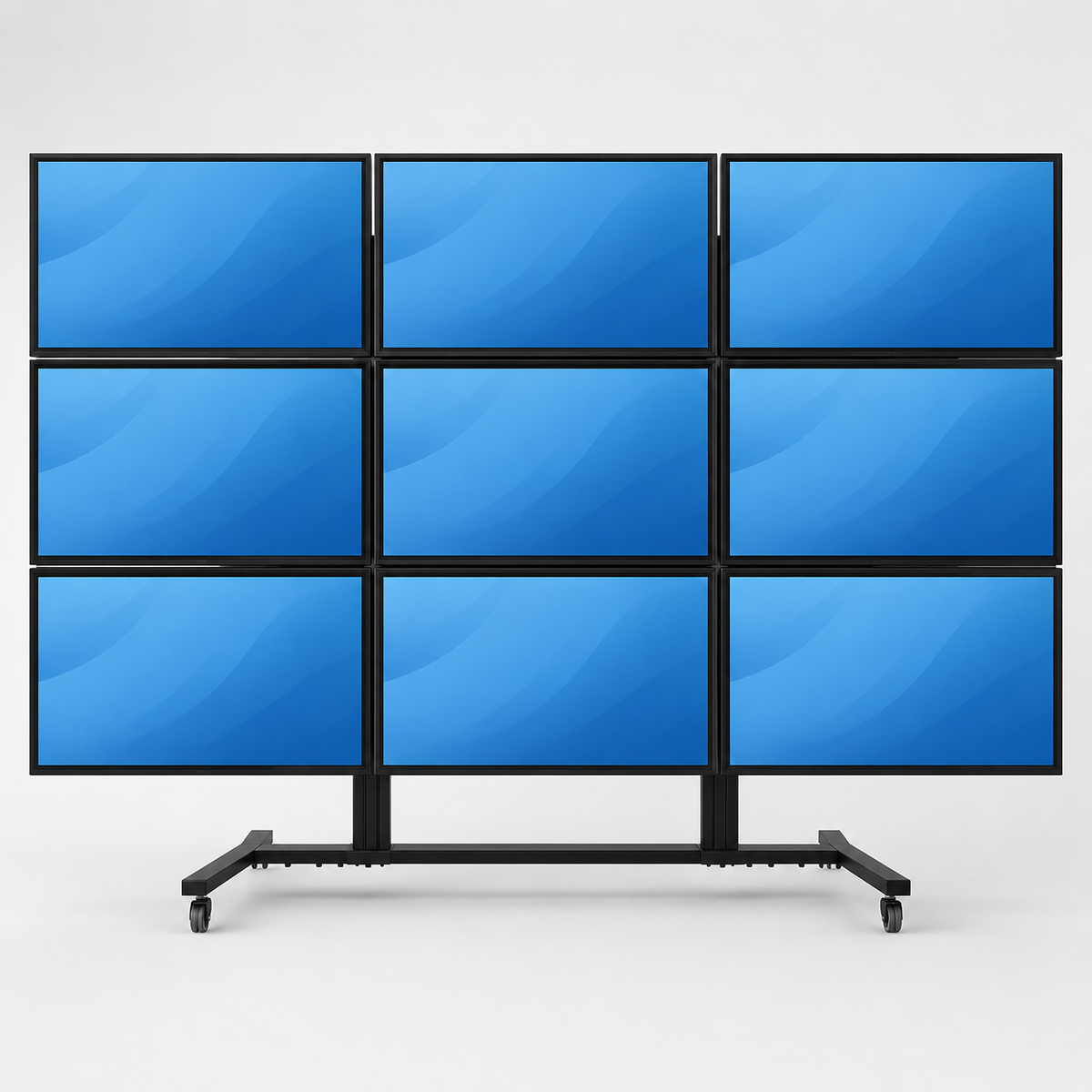

The RIFE VS-F9 Mobile Video Wall Stand is a heavy-duty, freestanding trolley designed specifically to mount nine flat-panel displays in a massive 3x3 video wall configuration. Built on a robust 180cm tall aluminum pillar system, this mobile stand allows you to transport a complete video wall between rooms, exhibition halls, or stages with ease.
Create a Mobile 3x3 Video Wall Anywhere
Traditional video walls are fixed to building infrastructure. The VS-F9 provides a versatile, mobile presentation system ideal for environments where wall mounting is impossible. With excellent height adjustability and a heavy-duty steel base on lockable castors, it ensures a perfect viewing angle for both sitting and standing audiences.
Key Features of the VS-F9 Stand
- 9-Screen Capacity (3x3): Specifically engineered to hold nine LCD or LED displays securely.
- Massive Load Capacity: Heavy-duty construction supports a total combined weight of up to 450 kg.
- Mobile & Stable: Equipped with heavy-duty castors (with locking sockets) for easy repositioning and solid stability during use.
- Adjustable Alignment: Features adjustable screen depth (20mm) and height (20mm) to ensure your 9 screens are perfectly flush and gapless.
- Durable Construction: Combining a high-grade steel base with a durable aluminum pillar for a sleek yet industrial-strength build.
Technical Specifications
| Model | VS-F9 |
| Configuration | 3x3 (Supports 9 Screens) |
| Supported Screen Size | 30" to 60" Displays |
| Max Weight Capacity | 450 kg (Total Load) |
| Max VESA Standard | 800x400 mm |
| Dimensions | 3318(L) x 600(W) x 1800(H) mm |
| Micro-Adjustments | Depth: 20mm | Height: 20mm |
| Material & Color | Aluminum & Steel (Silver/Black Finish) |
Ideal B2B Applications
- Trade Shows & Exhibitions: A mobile, high-impact digital signage solution for event booths.
- Control Rooms & NOCs: Create a secondary, movable monitoring wall for crisis management.
- Corporate Auditoriums & Lobbies: Deliver massive video conferencing (VTC) or welcome presentations.
- Retail Entrances: Command attention with a portable, large-scale digital advertising wall.
Frequently Asked Questions
1. How many screens can be mounted on this unit?
The VS-F9 is designed to hold up to nine (9) LCD, LED, or plasma displays in a 3x3 grid configuration.
2. What display sizes are recommended?
It supports screens ranging from 30 inches to 60 inches, provided they fit within the overall 450 kg weight limit and VESA specifications.
3. Can the screens be aligned perfectly to avoid gaps?
Yes. The mounting brackets feature 20mm of depth and height adjustability to allow for micro-adjustments, ensuring your screens sit flush against one another.
Request a B2B Project Quotation
Need a massive, mobile visual solution for your next project? Contact RIFE Technologies today with your specific monitor details to request a tailored commercial quotation for the VS-F9 9-Screen Stand.
